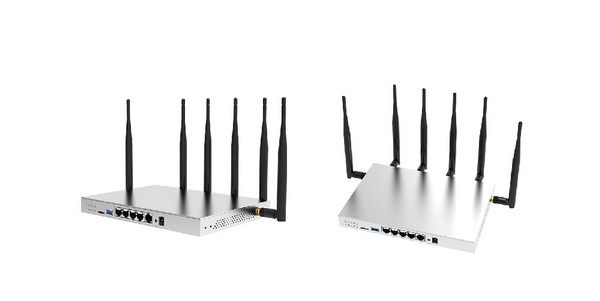

Wi-Fi Router

Rich Source, PERSONA Wi-Fi Router, Wireless AP

It provides a better internet experience with high-speed transmission and supports multi-devices connecting at the same time.

With wilder covered range with stable signal, users can have better-connecting quality while teaching and working.

It has multi-function, highly-performance, and easy to install. It will be your best choice to build your WLAN with multiple LAN ports available.

Features

It’s convenient for class and conference use, supports multi-devices connection, and high-speed transmission for users to download and transfer files without any delay.

3G Frequency Band:WCDMA(FDD)Band 1(2100M Hz)、WCDMA(FDD)Band 2(1900M Hz)、WCDMA(FDD)Band 5(850M Hz)、WCDMA(FDD)Band 8(900M Hz)、WCDMA TDD

4G Frequency Band:700M Hz(FDD Band28)、850M Hz(FDD Band5)、900M Hz(FDD Band8)、1700M Hz(FDD Band4)、2100M Hz(FDD Band1)、2300M Hz(FDD Band40)、2600M Hz(TDD Band7)

5G&2.4G wireless AP,6 Antennas with 5G&2.4G: 2*5dBi 2.4G Antennas 、2*5dBi 5.8G Antennas 、2 * 5dBi 3G/4G Antennas

Wi-Fi Router

For users to enjoy the fast and stable Wi-Fi experience; Equipped with 6 Antennas (5G & 2.4G) and 1200M bandwidth with built-in 32M FLASH and 512M RAMS. It supports 100 devices connecting at the same time, suitable for e-class and digital conference use.

Rich Source, PERSONA Wi-Fi Router, Wireless AP

OS Compatibility: Windows, Android, Mac

Mobile device OS Compatibility: Windows, Android, Mac, iOS, Chrome

If you needNCCBSMIEnergy LabelGreen MarkMIT Smile...etc,please go to the official website of certification to download

Firmware update: Click to download 2020/1/31 *Please backup before update, after update all data will be deleted, including installed APP and saved data.

FAQ

Connecting the router with power and connecting the Ethernet with WAN port. There are multiple LAN ports available, choose one of it and connect the devices with Ethernet cable.

The default management address of the device is 192.168.1.1. Default password is admin. If the management IP address of the upper-level device is the same as the IP segment of the device. The management of this device will automatically change to 192.168.2.1, the computer uses in a network cable to connect to any LAN port of the router. Enter local network card settings, choose DHCP internet access. Or set the fixed IP of the 192.168.1.x network segment, then open a browser and enter the default IP address http://192.168.1.1 Enter the default password admin to log in.

When the device has a 3G/4G Internet access module, the configuration page of the 3G/4G uplink network will appear. Default PPP dialing, different models may be needed choose different dialing mode, PPP has the best dial-up compatibility and supports the most modules. As default, the WAN port does not have access to the network cable or the WAN port is interrupted, then all online data will go to 3G/4G network. When 4G priority is selected, all online data is 3G/4G network. When 3G/4G failure, it will switch to ETH-WAN network.

When you forget the password and unable to log into the device or abnormal device configuration…etc, it is recommended to reset to the factory configuration, then reboot the device.

Reset mode 1: Use in a tip such as a pen tip or a toothpick to press and hold the reset button for more than 5 seconds after the device powered on, then wait for reboot device.

Reset mode 2: Click the “Execute Reset” button in “System Management-Restore setting”, and click “Perform Reset” button.

1.Our company's cloud platform can only support the company's OS firmware. It cannot be supported customer's own firmware.

2.If you are a new user, and need to use cloud management, please register your cloud platform management account with your mobile phone number. Note: the number of words is 11 digits. Please fill in the cloud platform account (ID) point on each router and save it after the registration is successful. You only need one account to manage all of the routers.
