>Every signal port has a corresponding Touch USB. For instance, if your signal connected to HDMI 1, your touch USB should also connect to Touch USB 1. When the touch screen detects a connecting device, it will auto-switch to the signal along with touch function.
P-Cap Touchscreen
Key Features
► 4K UHD
► Full-flat Multi-touch screen
► Android 8.0 with 4-core CPU, 4G RAM + 32G ROM
► 5G&2.4G Wi-Fi 802.11AC, can be used as Wi-Fi router
► Anti-virus, Anti-splashing and Anti-scratching
► Built-in Powerful Digital Whiteboard
► Maxima 9-split Screen Mirroring
► OS Compatibility (Android, Windows, Mac OS, Linux, Chrome)
Available sizes: 65", 75", 86".
P-Cap Touchscreen

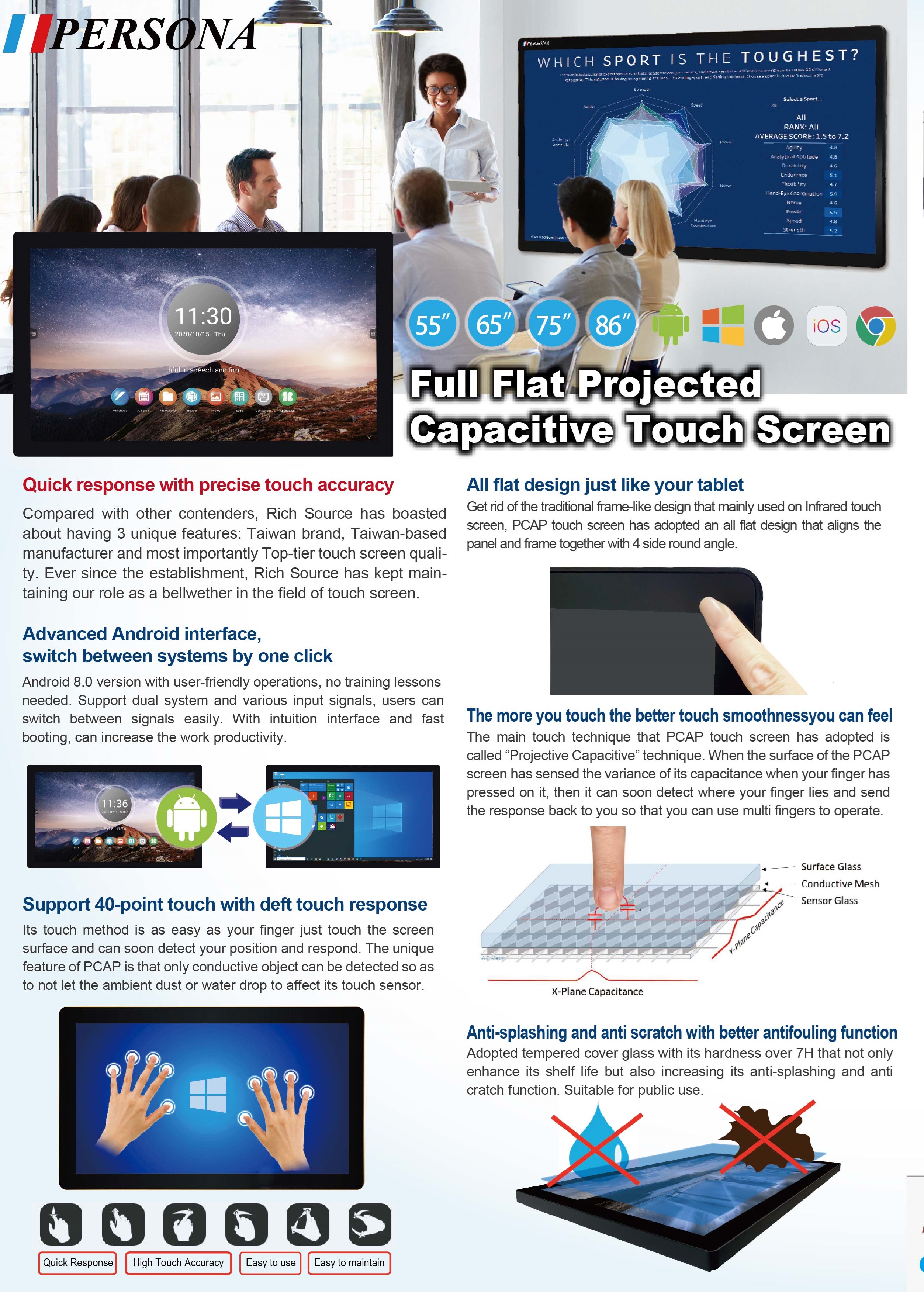

► P-Cap Introduction
It is proved that using our touch screen can increase the work efficiency: School teachers can collect the digital teaching material more easily; Enterprises can enhance corporate image along with higher income.
_一頁式01.jpg)
_一頁式02.jpg)

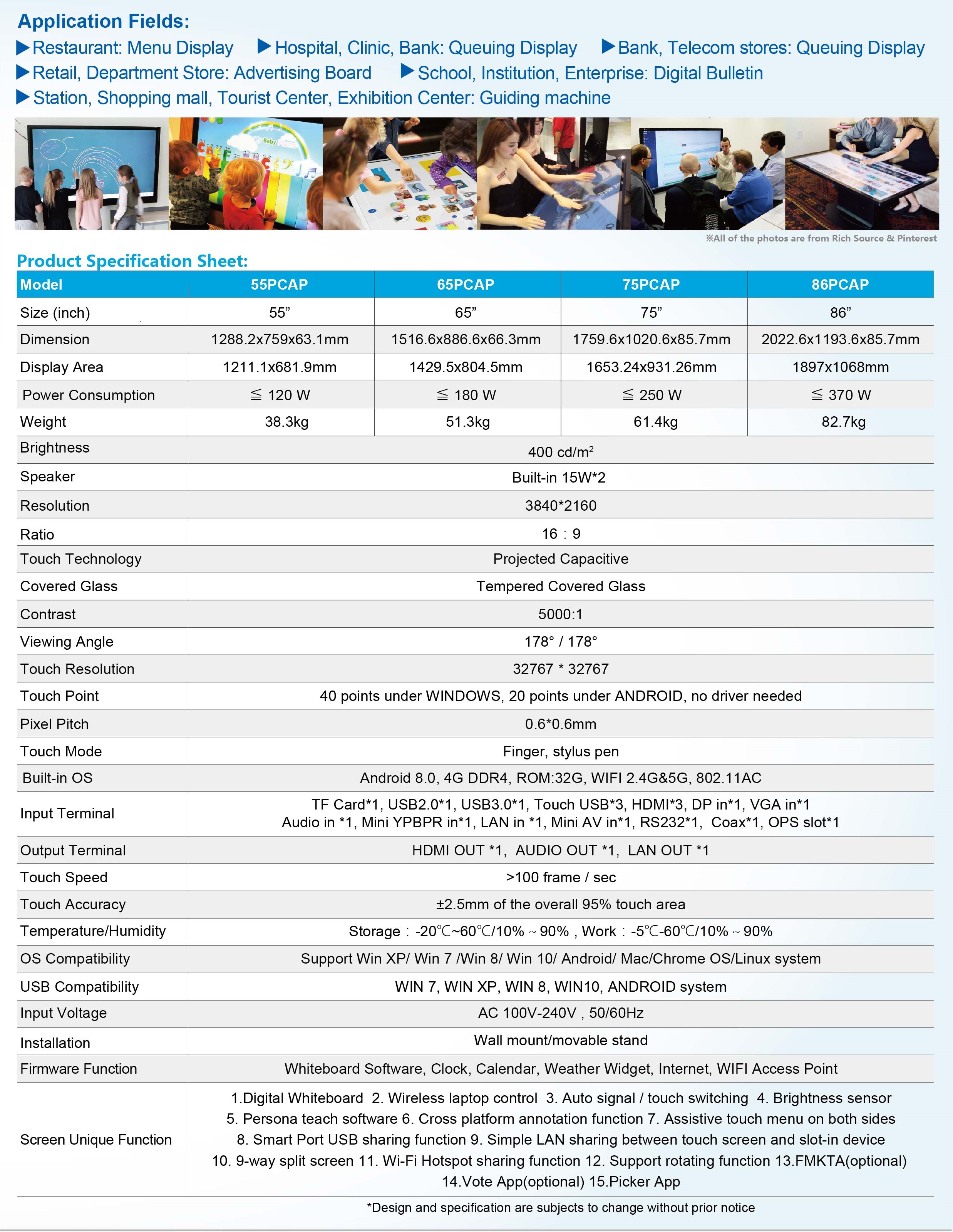

Design and specification are subject to change without prior notice
► Wireless Projection Tutorial:9-Split Mirroring function
► Magic KTA
FAQ
Turn on the hotspot function from the Internet setting section. You need to connect touch screen with Ethernet for sharing Wi-Fi to other devices, or you choose to use wired LAN out and connect with another device.
It has built-in smart USB sharing function in our Android 8.0 version touch screen, when you plug in the USB devices, all of the connecting devices can be detected and it reads the USB data without re-plugging.
Built-in 9 split screen mirroring function that supports iOS, Windows, Android, and Mac, users can mirror their devices on the touch screen under the same WLAN. The touch screen is also workable to transfer the screen image back to smart devices and wireless laptop control.
When facing screen, there is an HDMI output port on the left side of the screen. Any pictures shown on the screen can be transferred via HDMI out, including those images shown on Android interfaces and external computer devices.
The touch screen has a built-in App called Apkpure. You can download Apps directly in here. However, owing to the compatible issue, not all of the Apps you can download here.
USB specification: need to comply with USB TYPE-C, USB 3.1, Gen 2 support thunderbolt; Laptop specification: need to comply with DisplayPort support display.Comply with the above specifications can be used.
